With leading-edge application technology for electric boat batteries, we offer comprehensive power solutions ranging from battery packs and racks to containerized battery systems, and from hardware to BMS software.
Facing the global goal of reducing carbon emissions in shipping by 6% annually, we are committed to helping our clients comply with environmental regulations while lowering energy consumption and maintenance costs.
The integration of electrical systems facilitates the centralized control of onboard electromechanical equipment, which in turn supports the application of digital and smart technologies (such as intelligent scheduling and remote monitoring), thus enhancing vessel management efficiency.
With leading technology and extensive experience in marine battery product applications, we provide comprehensive energy storage solutions from cells, packs, BMS to systems, safeguarding the green development of new energy vessels and ports.

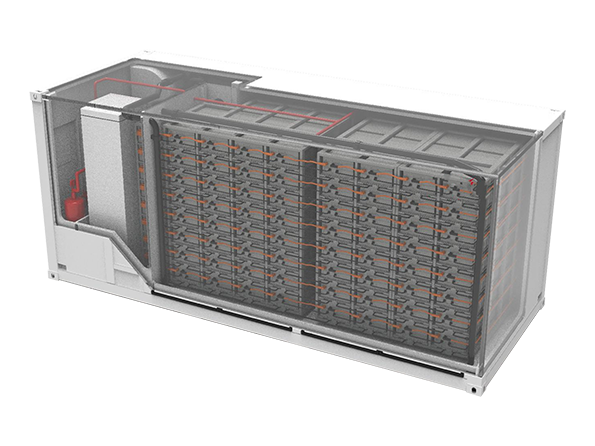

The marine battery system supports a maximum charge/discharge rate of 3C, and the containerized system also enables a 20-minute battery swap.
The product features a fully self-developed BMS, with built-in devices for faster temperature monitoring and alerts, ensuring stable operation of the battery system. It has been certified by CCS and BV classification societies.
Customized interface design allows for adaptable multi-port connectivity.
| Nominal Voltage (V) | Number of Series(S) | Nominal Energy (kWh) |
| 384 | 120 | 241.92 |
| 384 | 120 | 215.04 |
| 384 | 120 | 483.84 |
| 384 | 120 | 430.08 |
| 403 | 126 | 338.69 |
| 403.2 | 126 | 112.9 |
| 460.8 | 144 | 129.02 |
| 518.4 | 162 | 145.15 |
| 576 | 180 | 161.28 |
| 633.6 | 198 | 177.41 |
| 691.2 | 216 | 193.54 |
| 748.8 | 234 | 209.66 |
| 806.4 | 252 | 225.79 |
| 864 | 270 | 241.97 |
| 864 | 270 | 267.84 |

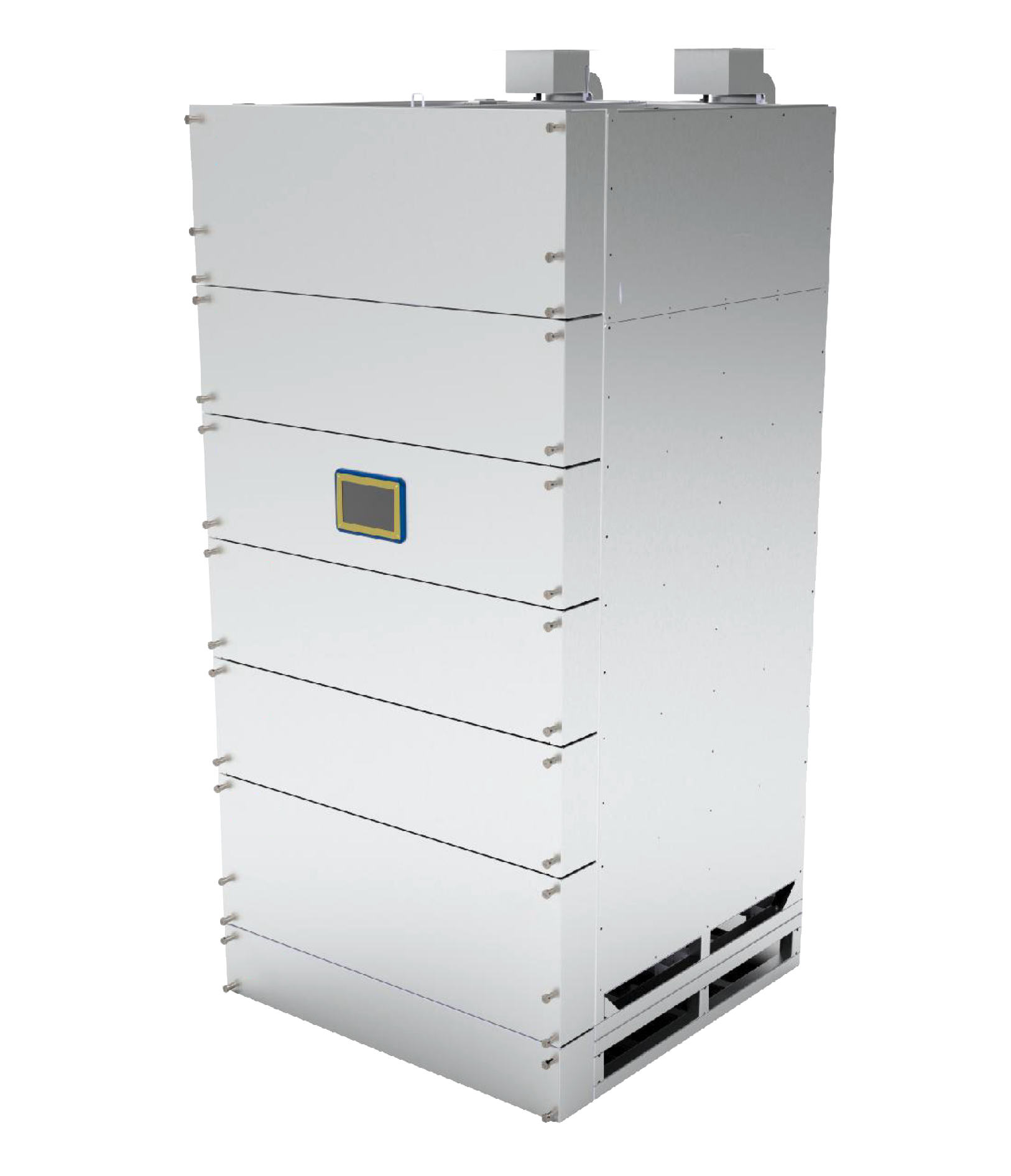

| DNV, BV Type Approval Battery String | ||
| Cell | LF280K | LF280K |
| Connection Mode | 1P270S | 8P270S |
| Nominal Energy | 241.92 kWh | 1935.36 kWh |
| Battery String Size | 1654*1085*2233mm | 13232*1085*2233mm |
| Nominal Capacity | 280Ah | 2240Ah |
| Maximum Continuous Charge/Discharge Current | 280Ah/280Ah | 2240A/2240A |
| Nominal Voltage | 864 VDC | 864 VDC |
| Voltage Range | 783-945 VDC | 783-945 VDC |
| Weight | 2000+50kg | 16000 50kg |
| Communication Protocol | CAN/RS485 | CAN/RS485 |
| Explosion-proof design | Explosion-proof breather valve | Explosion-proof breather valve |
| Case Material | Welding of square steel | Welding of square steel |
| Protection Degree | IP44 | IP44 |
| Thermal Management | liquid cooling/heating | Liquid cooling/heating |
| BMS | Integrated BMS | Integrated BMS |
| Start Mode | Local+remote startup | Localtremote startup |
| Alarm | Buzzer | Buzzer |
| Model | OE-B4-1P48S-11 | OE-B4-2P24S-11 |
| Cell | LF125P | LF125P |
| Configuration | 1P48S | 2P24S |
| Nominal Voltage | 154.56 VDC | 77.28 VDC |
| Operating Voltage Range | 139.2 VDC-168 VDC | 69.6 VDC-84 VDC |
| Charge and Discharge Rate | Max.3C | Max.1.5C |
| Capacity | 125Ah | 250Ah |
| Energy | 19.32 kWh | 19.32 kWh |
| Energy Density | 125 Wh/Kg | 125 Wh/Kg |
| Volume Density | 150 Wh/L | 150 Wh/L |
| Thermal Management | Top and bottom liquid cooling | Top and bottom liquid cooling |
| Service Life | ≥6000, 70% EOL | ≥6000, 70% EOL |
| Operating Temperature | -20-45°C | -20-45°C |
| Anticorrosion Grade | C5 | C5 |
| Max.Operating Altitude | 2000m | 2000m |
| Size (W*D*H) | 900*674*196mm | 900*674*196mm |
| Protection Rating | IP67 | IP67 |
| Cell | LF125P |
| Connection Mode | 1P288S |
| Nominal Energy | 115.92 kWh |
| Battery String Size | 1000*1000*2500 |
| Nominal Capacity | 125Ah |
| Maximum Continuous Charge/Discharge Current | ≤375A |
| Nominal Voltage | 927.36 VDC |
| Voltage Range | 835.2-1008 VDC |
| Weight | 1240+50kg |
| Communication Mode | CAN/RS485 |
| Explosion-proof Design | Explosion-proof breath valve |
| Case Material | Welding of square steel |
| Anticorrosion Class | C5 |
| BMS | Integrated BMS |
| Thermal Management | Double plate liquid cooling |
| Protection Degree | IP44 |
| Start Mode | Local+ remote startup |
| Alarm | Buzzer |
| Nominal Voltage(VDC) | Voltage Range(VDC) | Nominal Capacity(Ah) | Nominal Energy(kWh) | Weight(T) |
| 748 | 678~819 | 1400 | 1048 | 18.4 |
| 806 | 730~882 | 1128 | 19 | |
| 864 | 783~945 | 1209 | 19.8 | |
| 633 | 574~693 | 1680 | 1064 | 18.6 |
| 691 | 626~756 | 1161 | 19.3 | |
| 748 | 678~819 | 1257 | 20.3 | |
| 806 | 730~882 | 1354 | 21 | |
| 864 | 783~945 | 1451 | 21.8 | |
| 576 | 522~630 | 1960 | 1128 | 19.1 |
| 633 | 574~693 | 1241 | 20.2 | |
| 691 | 626~756 | 1354 | 21 | |
| 748 | 678~819 | 1467 | 22 | |
| 806 | 730~882 | 1580 | 22.9 | |
| 864 | 783~945 | 1693 | 23.9 | |
| 576 | 522~630 | 2240 | 1290 | 20.5 |
| 633 | 574~693 | 1419 | 21.7 | |
| 691 | 626~756 | 1548 | 22.7 | |
| 748 | 678~819 | 1677 | 23.9 | |
| 806 | 730~882 | 1806 | 24.8 | |
| 864 | 783~945 | 1935 | 27 | |
| 806.4 | 730.8～882.0 | 2480 | 1999.87 | 26 |
| 576 | 522~630 | 2520 | 1451 | 21.9 |
| 633 | 574~693 | 1596 | 23.3 | |
| 691 | 626~756 | 1741 | 24.3 | |
| 748 | 678~819 | 1886 | 25.7 | |
Brogen offers enterprise-level solutions and professional services for electric ships. Tailored battery systems from 90 kWh to 1900 kWh fit various ship models.
Our marine power products cover a wide range of applications, from yachts, catamaran, fishing boat, passenger boat, to RIB boat, workboat, cargo ship and offshore aquaculture platforms.
Enterprise-level tailored solutions for electric commercial vehicles from light-duty and heavy-duty trucks, buses, construction machinery and sanitation vehicles. HV battery System ranging from 90 kWh to 600 kWh to fit various vehicle models.
